Designed for gates where welding is not an option
• One sealed maintenance free bearing
• Adjustable barrel for precise installations
• Flat, bolt-on brackets for through bolting
• Zinc plated
• Load rating per gate: 270kg (600 lbs)
• Maximum gate weight: 100kg (250 lbs)

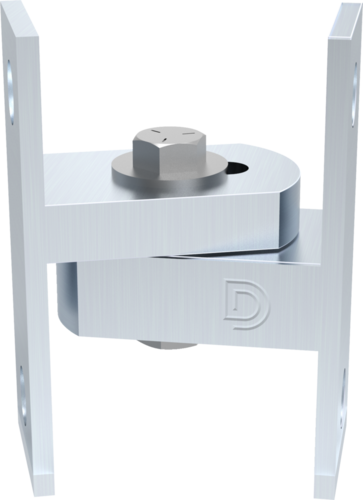

Like the Baby BadAss, this hinge Bolt-on Gate Hinge by SHUT IT is CNC machined to the tightest tolerances in the industry. Unlike The Baby BadAss, The Bolt-On Bady BadAss was designed to be used on smaller gates where welding the hinges to the gate and the end post is not an option. The Bolt-On BadAsses produce near frictionless movement with maintenance free usage.
| Brand | Shut It® BadAss |
| Product Code | CI3750 |
| Gate Application | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
| Gate Type | Non Self-Closing |
| Gate Material | Steel/Ornamental Iron |
| Approx Gate Size | 2m H x 3m W - (7ft x 10ft) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 38mm+ (1½") |
| Ideal Gate Gap | 76-89mm (3- 3½") |
| Fixing Method | Bolt-On |
| Colour/Finish | Zinc |
