• Suitable for motorised, uphill or heavy gates
• For square-posted, weld-on installations
• Zinc electroplated external components
• Swings 180º , fixed gap variance 13mm (1/2")
• Leaf straps can be cut to length
• Load rating per gate: 1,360kg (3,000 lbs)
• Maximum gate weight: 680kg (1,500 lbs)

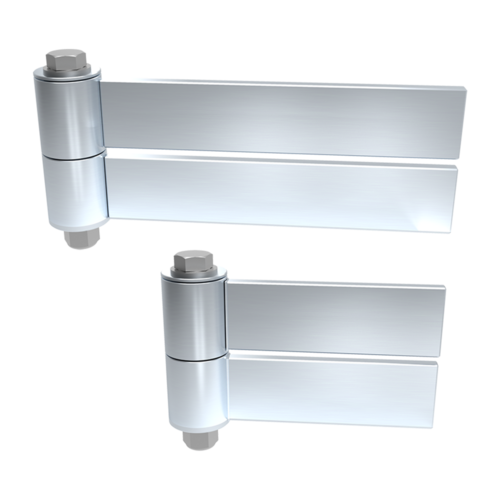

One of SHUT IT Gate Hardware’s newest gate hinges, the BadAss Strap Hinge, is a barrel hinge that includes either an 6" (152mm) or 10” (254mm) strap for convenient and flexible gate installations. The strap hinge is also one of SHUT IT’s strongest gate hinges with more bearing load than any hinge on the market. By combining different lengths top and bottom it is the ideal solution for opening gate on an uphill gradient.
| Brand | Shut It® BadAss |
| Product Code | CI3900-CI3925-CI3975 |
| Gate Application | Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
| Gate Type | Non Self-Closing |
| Gate Material | Steel/Ornamental Iron |
| Approx Gate Size | 2m H x 3m W - (7ft x 10ft) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 40mm+ (1½") |
| Ideal Gate Gap | Fixed at 13mm (½") |
| Fixing Method | Weld-On |
| Colour/Finish | Zinc |
