Designed for gates where welding is not an option
• Two sealed maintenance free bearings
• Adjustable barrel for precise installations
• Flat, bolt-on brackets for through bolting
• Zinc plated
• Load rating per gate: 900kg (2,000 lbs)
• Maximum gate weight: 450kg (1,000 lbs)

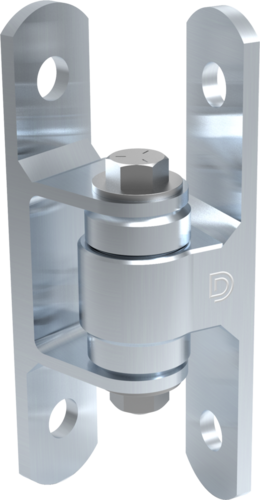

The Bolt-On BadAss was designed to be used on gates where welding the hinges to the gate and the end post is not an option. Due to SHUT IT’s unique bushing design The Bolt-On BadAsses, like all other SHUT IT gate hinges, produces near frictionless movement with maintenance free usage.
| Brand | Shut It® BadAss |
| Product Code | CI3700 |
| Gate Application | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
| Gate Type | Non Self-Closing |
| Gate Material | Steel/Ornamental Iron |
| Approx Gate Size | 2m H x 3m W - (7ft x 10ft) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 38mm+ (1½") |
| Ideal Gate Gap | 74-86mm (3-3½") |
| Fixing Method | Bolt-On |
| Colour/Finish | Zinc |
