• Opens to 180°
• Achieve gate gaps as small as 1/2" (13mm)
• Horizontally adjustable to 1/2" (13mm)
• Both weld-on and bolt-on models available
• High-temp bearings, safe to powder-coat
Load rating per gate: 2,000 lb (900kg)
Maximum gate weight: 1,100 lb (500kg)

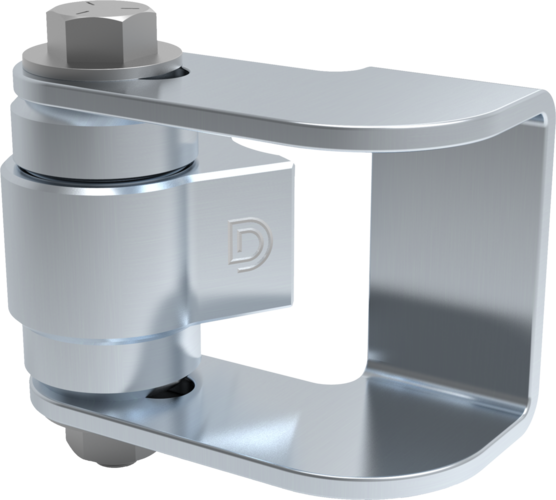

Face Mount gate hinges are manufactured with the industry’s first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate. The Face Mount opens to a full 180º for optimum opening angle and is available in bolt-on or weld-on models. They are horizontally adjustable for perfect installations and to allow proper gate movement, and the adjustability enables gate gaps as small as 1/2 “ (13mm). Zinc electroplating construction leads to long lasting rust and corrosion protection. Shut It hinges have been tested to over 1 Million open / close cycles and feature a limited lifetime warranty.
| Brand | Shut It® BadAss |
| Product Code | CI3050 |
| Gate Application | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
| Gate Type | Non Self-Closing |
| Gate Material | Steel/Ornamental Iron |
| Approx Gate Size | 2m H x 3m W - (7ft x 10ft) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 38mm+ (1½") |
| Ideal Gate Gap | 74-86mm (3-3½") |
| Fixing Method | Weld-on |
| Colour/Finish | Zinc |
