Designed to bolt on to an end post
• High-temperature sealed bearings – safe to powder coat with hinges installed on gate
• Yoke material is steel, the body material is aluminium
• No greasing, no maintenance. EVER!
• Horizontal adjustability for perfect installations
• Flat, bolt-on bracket for through bolting
• Zinc plated
• Load rating per gate: 900kg (2,000 lb)
• Maximum gate weight: 450kg (1,000 lb)

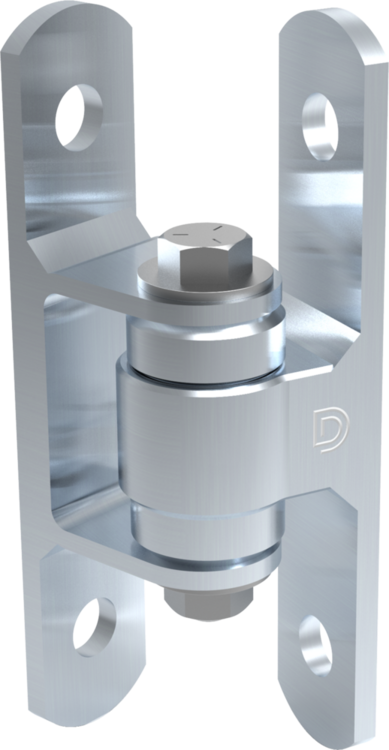

All bolt-on gate hinges by SHUT IT are CNC machined to the tightest tolerances in the industry. The Half Bolt-On BadAss was designed to be used on gates where welding the hinges to the end post is not an option (no field welder). The Half Bolt-On BadAsses produce near frictionless movement with maintenance free usage.
| Brand | Shut It® BadAss |
| Product Code | CI3770 |
| Gate Application | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
| Gate Type | Non Self-Closing |
| Gate Material | Steel/Ornamental Iron |
| Approx Gate Size | 2m H x 3m W - (7ft x 10ft) |
| Gate Frame/Post Shape | Square-to-Square, Square-to-Round |
| Min Post Size | 38mm+ (1½") |
| Ideal Gate Gap | 67-80mm (2½-3") |
| Fixing Method | Bolt-On, Weld-On |
| Colour/Finish | Zinc |
