• Made to bolt or weld to 102mm - 127mm (4” or 5”) fence posts
• Wider brackets enable anchor points to be positioned at the sides, rather than centre of fence post - reducing flexing, preventing fatigue in fence post
• High-temperature sealed bearings - safe to powder coat with hinges installed on gate
• No greasing, no maintenances. EVER!
• Precision bushing - distributes gate load for optimal performance and longer life
• CNC machined to perfection and near frictionless movement
• Max Gate Load: 450kg (1,000 lb)
• Max Gate Weight: 270kg (600 lb)
• Limited Lifetime Warranty

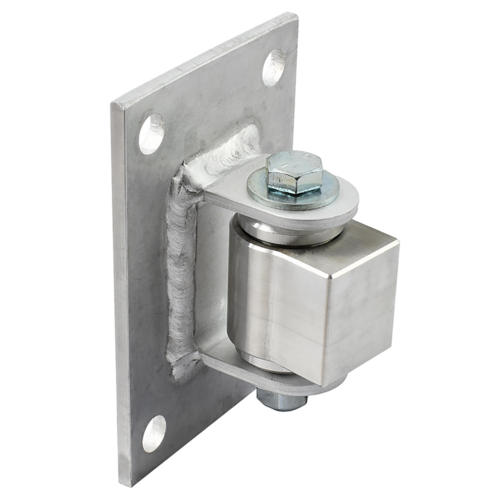

With a wide mounting plates and four anchor points, the 4” and 6” Half Bolt-on BadAss hinges reduce fence post flexing, preventing fatigue in the fence post. Four anchor points position bolts at the sides, rather than the center of the fence post for a solid, stronger connection. Shut It gate hinges are assembled in the U.S.A. with the industry’s first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate.
| Brand | Shut It® BadAss |
| Product Code | CI3740A |
| Gate Type | Non Self-Closing |
| Gate Material | Aluminum |
| Approx Gate Size | 1.5m x 2m (6ft W x 8ft H) |
| Gate Frame/Post Shape | Square-to-Square, Square-to-Round |
| Min Post Size | 38mm+ (1½") |
| Ideal Gate Gap | 73-86 mm (3 ¼" - 3 ¾") |
| Fixing Method | Bolt-On, Weld-On |
| Colour/Finish | Unfinished |
