• Three sealed maintenance free bearings
• Adjustable bracket for perfect installations
• Ideal for square or round-post installations
• Holds 50% more load than the ‘Original’
• Load rating per gate:1,360kg (3,000 lbs)
• Maximum gate weight: 680kg (1,500 lbs)

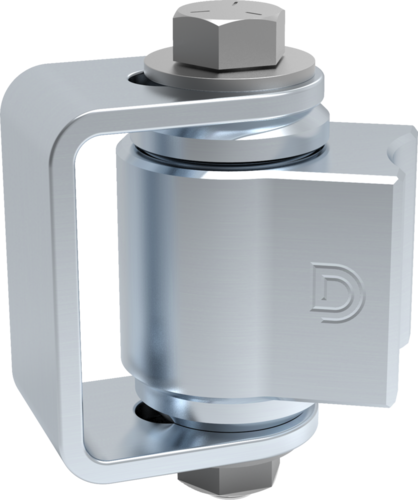

The Heavy-Duty BadAss Hinge is one mighty dude! Designed for the rarest of installations where even The ORIGINAL is not BAD enough. For these situations, SHUT IT has designed the HD to hold 50 percent more load than the ORIGINAL. As with all our BadAss hinges, the HD is CNC machined to the industry’s tightest tolerances.
| Brand | Shut It® BadAss |
| Product Code | CI3500 |
| Gate Application | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
| Gate Type | Non Self-Closing |
| Gate Material | Steel/Ornamental Iron |
| Approx Gate Size | 2m H x 3m W - (7ft x 10ft) |
| Gate Frame/Post Shape | Square-to-Square, Square-to-Round |
| Min Post Size | 38mm+ (1½") |
| Ideal Gate Gap | 61-74mm (2½ - 3") |
| Fixing Method | Weld-On |
| Colour/Finish | Zinc |
