Available in Steel or Rusted Finish
• Adjustable bracket for precise installations
• Two sealed maintenance-free bearings
• Ideal for both flat and round post installations
• Load rating per gate: 900kg (2,000 lbs)
• Maximum gate weight: 500kg (1,100 lbs )

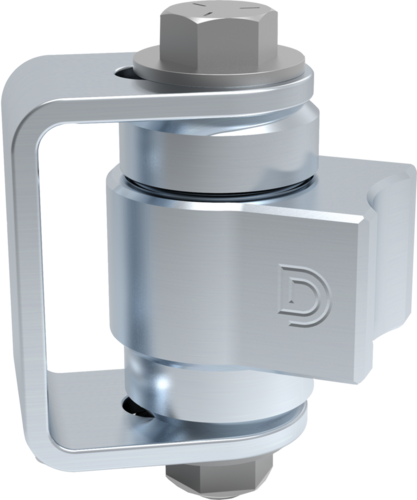

The ORIGINAL BadAss gate hinge is CNC machined to the tightest tolerances in the industry. Due to SHUT IT’s unique bushing design The ORIGINAL, like all other SHUT IT gate hinges, produces near frictionless movement with maintenance free usage.
| Brand | Shut It® BadAss |
| Product Code | CI3000-CI3100 |
| Gate Application | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
| Gate Type | Non Self-Closing |
| Gate Material | Aluminium, Steel/Ornamental Iron |
| Approx Gate Size | 2m H x 3m W - (7ft x 10ft) |
| Gate Frame/Post Shape | Square-to-Square, Square-to-Round |
| Min Post Size | 38mm+ (1½") |
| Ideal Gate Gap | 61-74mm (2½ - 3") |
| Fixing Method | Weld-On |
| Colour/Finish | Zinc, Rusted |
