• For pool and safety gates install a hinge safety cap (optional)
• Quick and easy to install
• Self-closes gates up 70kg (154 lbs)
• Won’t rust, bind, sag or stain
• Simple, adjustable closing tension (from either end of hinge)
• Super-strong polymer and stainless steel construction
• UV-stabilised and self-lubricating durability
• Decorative trim covers available (no visible fasteners)
• Optional 1 or 2 side-fixing legs for faster alignment & added strength
• Australian Made
• Lifetime Warranty

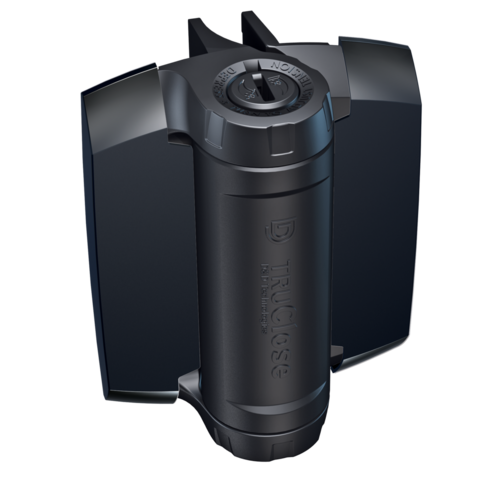

TruClose® Safety Gate Hinges are the world's most trusted child safety gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The TruClose HEAVY DUTY range of hinges are designed for heavy or high-traffic gates weighing up to 70kg. The engineering-grade polymers and a stainless-steel closing spring deliver hinges designed to last a lifetime. Due to a high degree of safety and reliability, TruClose hinges are ideal for child safety gates around swimming pools*, childcare centres, schools, homes, playgrounds and hotels/resorts. TruClose hinges are quick and easy to install and to adjust for self-closing speed. They come standard with Black trim covers, which means there are no visible fasteners. Optional Polished or Chrome metallic trim covers are also available. The TruClose® HEAVY DUTY hinges come in a range of other options, including some with side-fixing legs (to assist speedy installation and extra fixing strength), a MultiAdjust version offering remarkable 3-way adjustment (vertical, horizontal and tension adjustment) and a version for round-posted gates and fences (such as on tennis court gates etc.). D&D has sold millions of these award-winning TruClose® Safety Gate Hinges worldwide. * When installing TruClose® hinges to a swimming pool gate always confirm any safety requirements with your local Council or safety authorities to ensure compliance.
| Brand | TruClose® |
| Product Code | TCHD1AS3 |
| Gate Application | Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate |
| Gate Type | Self-Closing |
| Gate Material | Aluminium, Steel/Ornamental Iron |
| Self-Closing Gate Weight | Up to 70kg (154lbs) |
| Approx Gate Size | 1.2m W x 1.8m H (4ft x 6ft) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 35mm+ (1 3/8") |
| Ideal Gate Gap | 19mm (¾") |
| Fixing Method | Screw-On |
| Colour/Finish | Black, Brushed Metallic, Polished Metallic |
